High-Resolution Imaging
High-performance microfocus source and precision detector for sharper imaging
WHY CHOOSE US
Key advantages
Combine high-resolution imaging, four-axis motion, and intelligent algorithms for more precise and efficient inspection.
Four-Axis Motion System
Precision X/Y/Z/R motion for multi-angle inspection of complex structures
Intelligent Inspection Analysis
AI-assisted judgment to improve inspection efficiency and accuracy
Multi-Layer Safety Protection
Fully enclosed tube design with multi-interlocks and radiation shielding for safe, reliable operation
Efficient Offline Inspection
Offline programming reduces wait time and improves production efficiency
APPLICATION SCENARIOS
Applications
Internal defect inspection for a wide range of industries and products
PCBA Inspection
Solder joints, cold joints, voids, bridges, and related defects
BGA Inspection
BGA balls, voids, bridges, and pad defects
Semiconductor Inspection
Package, lead-frame, bonding, and related internal defects
Connector Inspection
Connector terminals, welds, pins, and related defects
Electronic Component Inspection
Internal structure of inductors, capacitors, diodes, and similar components
TECHNICAL DATA
Technical specifications
Model
HF-S80
X-ray Source
Sealed microfocus X-ray tube
Max. Voltage
130kV
Max. Current
100μA
Detector
Flat-panel detector
Pixel Size
75 μm / 100 μm (optional)
Axes
Four-axis (X/Y/Z/R)
X/Y Travel
600mm × 600mm
Z Travel
150mm
R Rotation
± 180°
Dimensions
Approx. 1600 × 1400 × 1900 mm
Weight
Approx. 1500 kg

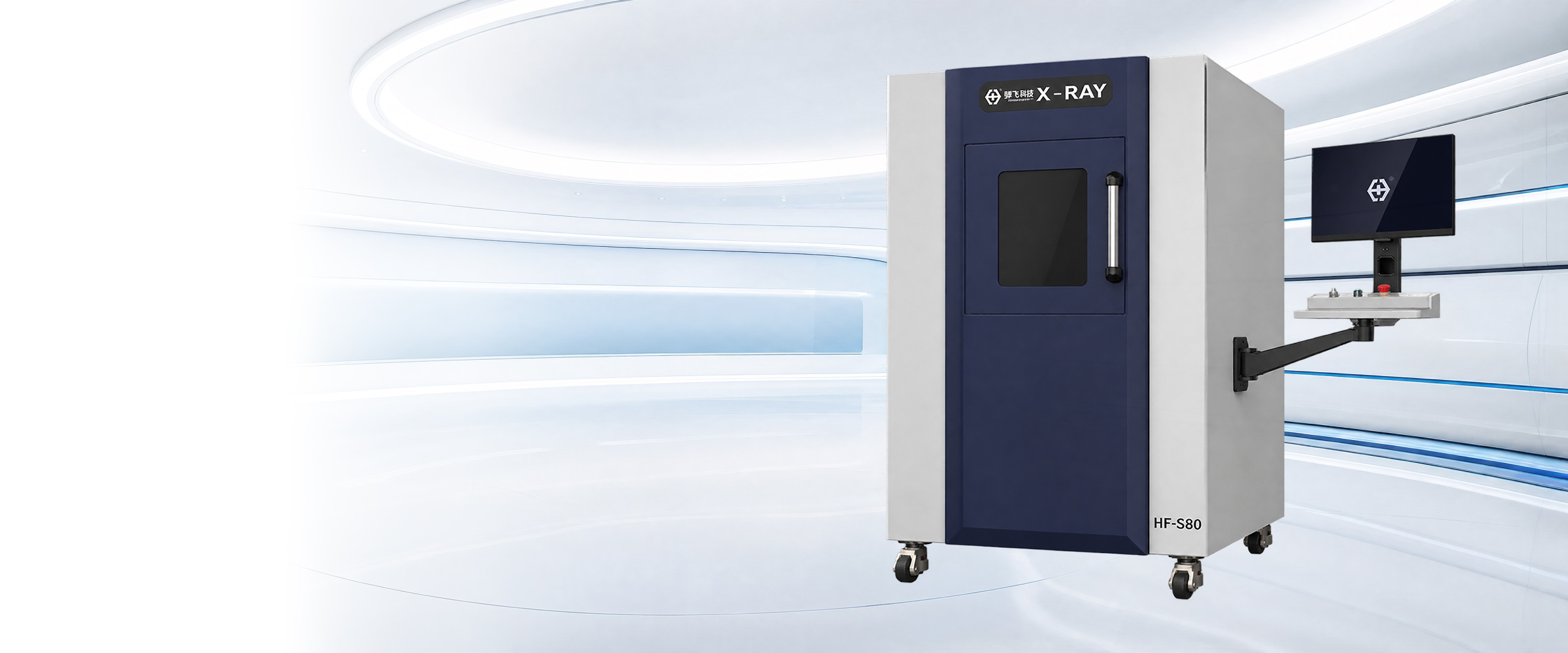

HF-S80 is Wahfei Technology's four-axis entry offline X-ray inspection system for observing internal structure and solder condition without destroying the workpiece.
It suits offline inspection of electronics, PCBA, BGA, and similar samples — a foundation platform for quality analysis, process validation, and sample review.
Imaging configuration, workpiece size, and inspection range depend on material, thickness, and target defects. Submit sample information for tailored evaluation and selection advice.
